At Hindchef Factory, we have a fully dedicated manufacturing unit for softy-making machines. Here, each part of the machine, including the outer and inner bodies, is manufactured by our CNC laser cutting machine. We make( 2+1) softy making machine by the skilled and dedicated labor with all the main features for the multi-flavored ice-cream.
Watch the video
Manufacturing process of Indian softy ice cream machine
Indian softy machine manufacturing
Almost 90% and above suppliers of softy machines in India sell the Chinese machines under the name of Taiwan-made machine. On the other hand, there can be many issues, like parts replacement, condenser and cooling capacity, and others, that might fluctuate in the imported machines. However, as soon as we choose the softy-making machines manufactured in India. We find that operating the machine is considerably simpler and more reliable over time.
Benefits of buying Indian Softy-machine
Buying an Indian softy-machine can offer several benefits:
- Easy Customization: Indian softy-machines can have customization options as per the business needs.
- Cost-effective: Compared to imported machines, Indian softy-machines may be more affordable due to lower import costs and maintenance expenses.
- Warranty and After-Sales services: Local manufacturers usually provides warranty on the softy machines. And, after sale services is also easy to get with the purchased product free or paid as per the services terms and condition.
What is a softy machine manufacturing process?
At Hindchef plant, we have a streamlined softy machine manufacturing process. Here, we shall be going through the entire process of making a softy machine:

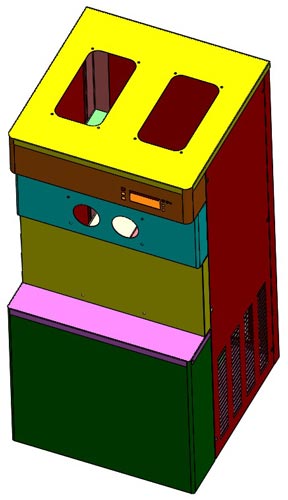

- 3D designing: A 3D layout and complete designing is created on the AutoCAD software. This finally makes the correct positions of all parts that needs to be placed. This is a complete design is now segreagated in small elements(outer and inner parts )to make a final touch to the particular portions. And small elements gets converted into 2D OR DXF format. These DXF format is the laser cutting command that is accepted into the cypone software.
- Laser cutting of different parts: Now, the next turn is to do the laser cutting of its parts via a metal laser cutting machine. For this, we need to load the steel/iron sheet underneath the laser beam emmission area. And, it cuts very precisely with the required measurment over the cutting sheets.
- Parts bending via bending machine: Once all the metal sheet material cutting completes, it is trasferred to the huge bending machine. And, we bend the outer and inner body parts(i.e, outer, inner cover) to make the final softy machine body.
- Softy machine components assembly: All kind of main components of softy making machine are assembled at our factory.

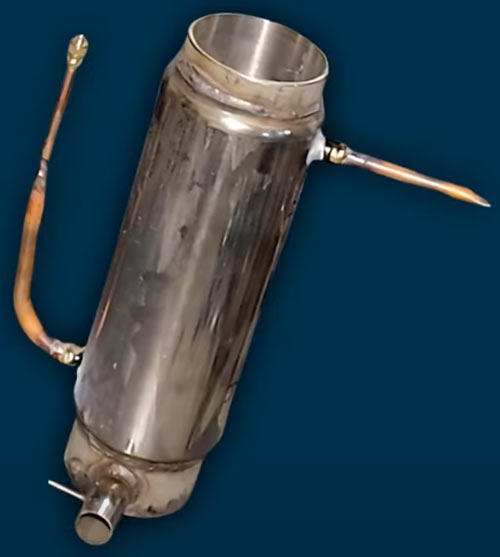

- softy cylinder:
We make the two cylinders (right and left) for the 2+1 flavored softy machine. This cylinder helps with beater movement and ice cream production. It’s external and internal pipe clubes together, and then goes through the welding process. Later, we fill the high-pressure (500 psi) nitrogen gas inside the cylinders. Simultaneously, we check for any kind of leakage inside it, to avoid future damages.

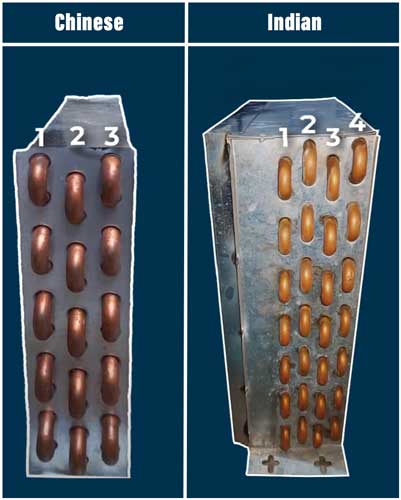

2. Condenser: We manufacture 4 row heavy condenser. It has a more cooling capacity comparatively to the chinese condenser which is made up of 3 row condensers. A 3 row condensers fails to work after 35*c and has limited cooling capacity.

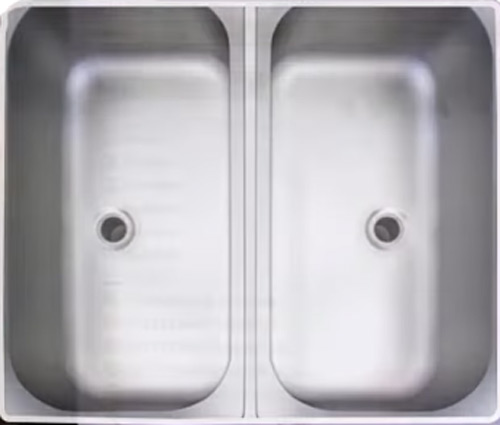

3. Hooper: It is completely fixes with the outer body to cover the machine. And for pouring the premixe bases inside the hooper.

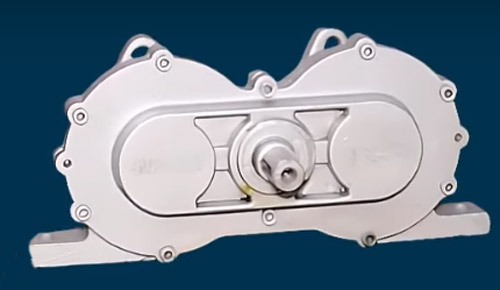

4. Gear box- There are 25 components present in the gear box. Its all are parts making process goes through different companies
Read More
Question and Answer in this video
Q1. What is the price of the Indian made softy machine?
The softy machine price is RS1.25 lakhs +GST. However, it depends on seasonal demand and further modification requirements.
Q1. Where is your softy making plant located?
We are located in West Delhi. However, you can reach by our call/whatapp number 9266606060.
